What are the signs that my trim & tilt hydraulic ram is failing?

Common signs include hydraulic fluid leaks, slow or uneven trim movement, the engine not holding trim position, or the trim system making unusual noises. If ignored, a failing hydraulic ram can lead to loss of control and further damage to the trim & tilt system.

Can a leaking trim ram be repaired, or does it need replacement?

In many cases, leaking trim & tilt hydraulic rams can be rebuilt by replacing seals, O-rings, and worn internal components. If the ram shaft is severely pitted or bent, replacement may be required. We always inspect first and recommend the most cost-effective solution.

Is it safe to keep using my boat if the trim & tilt is not working properly?

No, operating a boat with a faulty trim & tilt system can be unsafe. Improper trim affects handling, fuel efficiency, and engine cooling. A sudden failure can also cause the engine to drop unexpectedly, risking damage to the outdrive or transom.

What is included in your trim & tilt hydraulic ram repair service?

Our service includes full inspection, disassembly of the hydraulic ram, seal and O-ring replacement, fluid flushing, pressure testing, and system calibration. We ensure smooth operation and proper load-holding before returning the boat to service.

How long does a trim & tilt hydraulic ram repair usually take?

Most trim & tilt hydraulic ram repairs are completed within 1–2 business days, depending on parts availability and condition of the ram. On-site marina service is available in Newport Beach and Long Beach to minimize downtime.

Do you service all major trim & tilt systems and engine brands?

Yes, we service trim & tilt systems for Mercury, Yamaha, Honda, Suzuki, Volvo Penta, and other major marine engine brands. Both outboard and sterndrive hydraulic trim systems are supported.

Do you provide a warranty on trim & tilt hydraulic ram repairs?

Yes, all trim & tilt hydraulic ram repairs include a workmanship warranty ranging from 3 to 12 months, depending on the scope of work. Any replaced parts are covered by the manufacturer’s warranty, and full service documentation is provided.

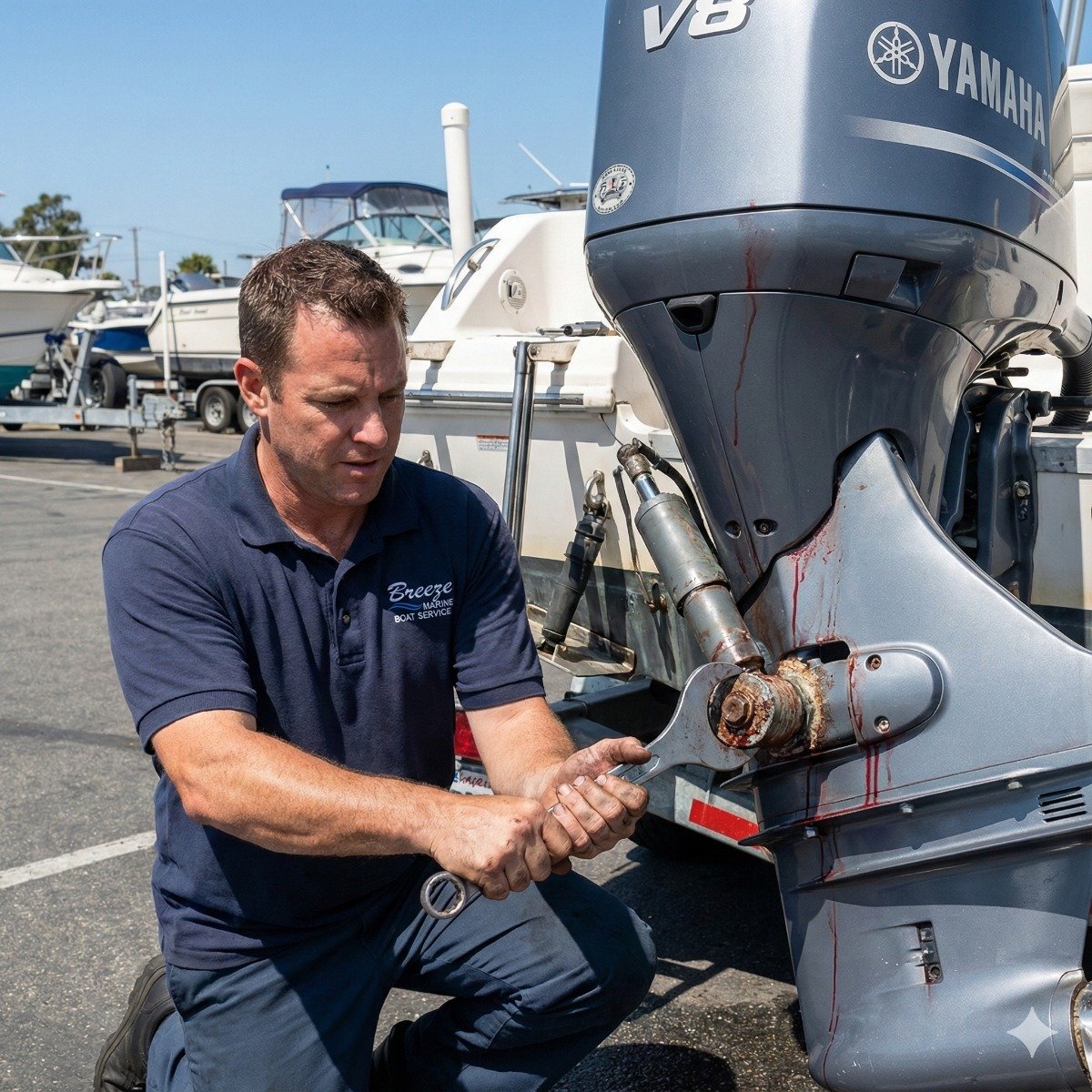

Marine technician using a specialized spanner wrench to remove the corroded end cap of a hydraulic trim ram on a large outboard motor at a boatyard in Long Beach.

Trim & Tilt Hydraulic Ram Repair

SKU

2148

Rating:

100 % of 100

4 Reviews Add Your Review

$150.00

Can't get on plane? A leaking trim system ruins your ride. We rebuild hydraulic trim and tilt rams, replacing blown seals and removing seized caps to restore powerful lifting force.

Details

Precision Lift

Total Control.
Restored.

A leaking trim system does more than stain your driveway; it kills your performance. We rebuild hydraulic rams with industrial-grade seals, restoring the lifting power you need to plane out and trailer confidently.

Seized Cap Removal

The hardest part of the job. Saltwater fuses aluminum caps to the cylinder. We use specialized pin wrenches and controlled heat induction to remove them without destroying the expensive housing.

Internal Resealing

We don't just fix the external leak. We disassemble the piston assembly and replace the internal bypass seals. This fixes "leak down," where the engine slowly sinks while parked.

Rod Polishing

A rough ram shaft will tear new seals in minutes. We micro-polish the stainless steel rams to remove pits and scratches, ensuring the new wiper seals glide smoothly and seal perfectly.

The Rebuild Process.

Don't replace. Rebuild.

Extraction

We carefully remove the rams from the transom brackets. This often involves driving out seized stainless steel pins that have merged with the aluminum housing.

Bench Service

We clamp the unit in a soft-jaw vise. Using a specialized spanner tool (not a pipe wrench!), we unscrew the gland caps and extract the piston assembly.

Seal & Polish

We replace the wiper seal, O-rings, and backup rings with high-quality urethane components. We polish the rod on a lathe to a mirror finish.

Bleed & Test

After reinstallation, we fill the system with the correct marine hydraulic fluid and bleed the air. We load-test the trim to ensure it holds position without creeping.

Power Restored.

A leak-free transom.

Disassembled Trim Ram Bench

New End Cap Installation

Polished Stainless Rod

Systems We Service.

From classic to modern units.

Mercury / MerCruiser Alpha One & Bravo Rams

Yamaha Outboards Single & Dual Ram Tilt Units

Volvo Penta SX & DPS Trim Cylinders

Common Questions

Why does my engine drop down overnight?

This is called "leak down." It's rarely an external leak. Usually, the internal check valve or piston o-ring has failed, allowing fluid to bypass the piston. A rebuild fixes this.

Can I just add fluid?

Adding fluid is a temporary band-aid. If fluid is getting out, water is getting in. Water in the hydraulic system will rust the pump and motor, leading to a much more expensive failure.
