What are Digital Switching Systems (DSS) in boating, and why should I upgrade?

Digital Switching Systems (DSS), such as CZone or EmpirBus, replace traditional analog switches and fuses with networked electronic modules. They allow you to control, monitor, and automate your vessel’s DC electrical devices via Multifunction Displays (MFDs) or tablets. The main benefits of upgrading include simplified wiring, customizable control screens, the ability to create 'Scene' modes (e.g., "Anchor Up"), and comprehensive real-time system monitoring for diagnostics.

How does digital switching improve marine safety and electrical efficiency?

DSS enhances safety by providing instant fault detection and alerts displayed on the helm MFD, superior over-current protection, and the ability to remotely power cycle devices. For efficiency, it drastically reduces the weight and complexity of wiring, saves installation time, and supports automatic load shedding (turning off non-essential devices if battery voltage is low) to conserve power.

What are the primary components of a typical Digital Switching System installation?

A system primarily consists of: 1. Input/Output (I/O) Modules (Power Distribution Modules) that replace physical fuses/relays. 2. The NMEA 2000 Network Backbone linking all components. 3. Control Interfaces, which are the MFDs or specialized digital keypads used by the operator. 4. A System Core/Processor (often integrated into a main module) that runs the system's customized logic and automation.

What is NMEA 2000, and how does it relate to digital switching?

NMEA 2000 (N2K) is the marine industry standard communication protocol built on CAN bus technology. It allows electronic devices (GPS, sonar, engine sensors) from different brands to communicate via a single, multi-directional backbone cable. Digital switching systems use the NMEA 2000 backbone as their communication highway, sending control messages (PGNs) from the MFD to the power modules to activate circuits.

What are PGNs in NMEA 2000, and why are they important for integration?

PGN stands for Parameter Group Number. PGNs are the standardized digital messages used in the NMEA 2000 protocol. Every piece of data—whether it's engine RPM, wind speed, or a digital switching command—is assigned a unique PGN. This standardization is critical because it ensures that devices from any NMEA 2000 certified manufacturer can reliably interpret and act on the data being shared across the network.

What are the three essential rules for a reliable NMEA 2000 network installation?

For optimal performance, three rules must be followed: 1. Proper Termination: A 120-Ohm terminator must be installed only at each physical end of the backbone (resulting in 60 Ohms total resistance). 2. Central Power Tap: The single power source (9-16V) must be connected as close to the center of the backbone as possible to prevent voltage drop. 3. Drop Cable Length: Individual device drop cables must not exceed 6 meters (20 feet) in length.

How is troubleshooting a digital switching system different from a traditional wired system?

Troubleshooting shifts from physically tracing wires and testing voltage at the fuse block to digital network diagnostics. Key checks involve: 1. Network Resistance Test: Verifying exactly 60 Ohms between the CAN-H and CAN-L wires. 2. Voltage Check: Confirming stable power (9-16V) at the backbone extremities. 3. Software Diagnostics: Using MFD or dedicated tools to view network load (LEN/Current draw) and identify failed or non-responsive modules.

What is a Load Equivalency Number (LEN) on an NMEA 2000 device?

The LEN is a crucial metric that quantifies a device's power consumption on the NMEA 2000 network. One LEN equals 50 mA (0.05 Amps) of current draw. System designers must calculate the total LEN of all connected devices to ensure the network power supply and cabling can handle the combined load, which should generally not exceed 3 Amps total.

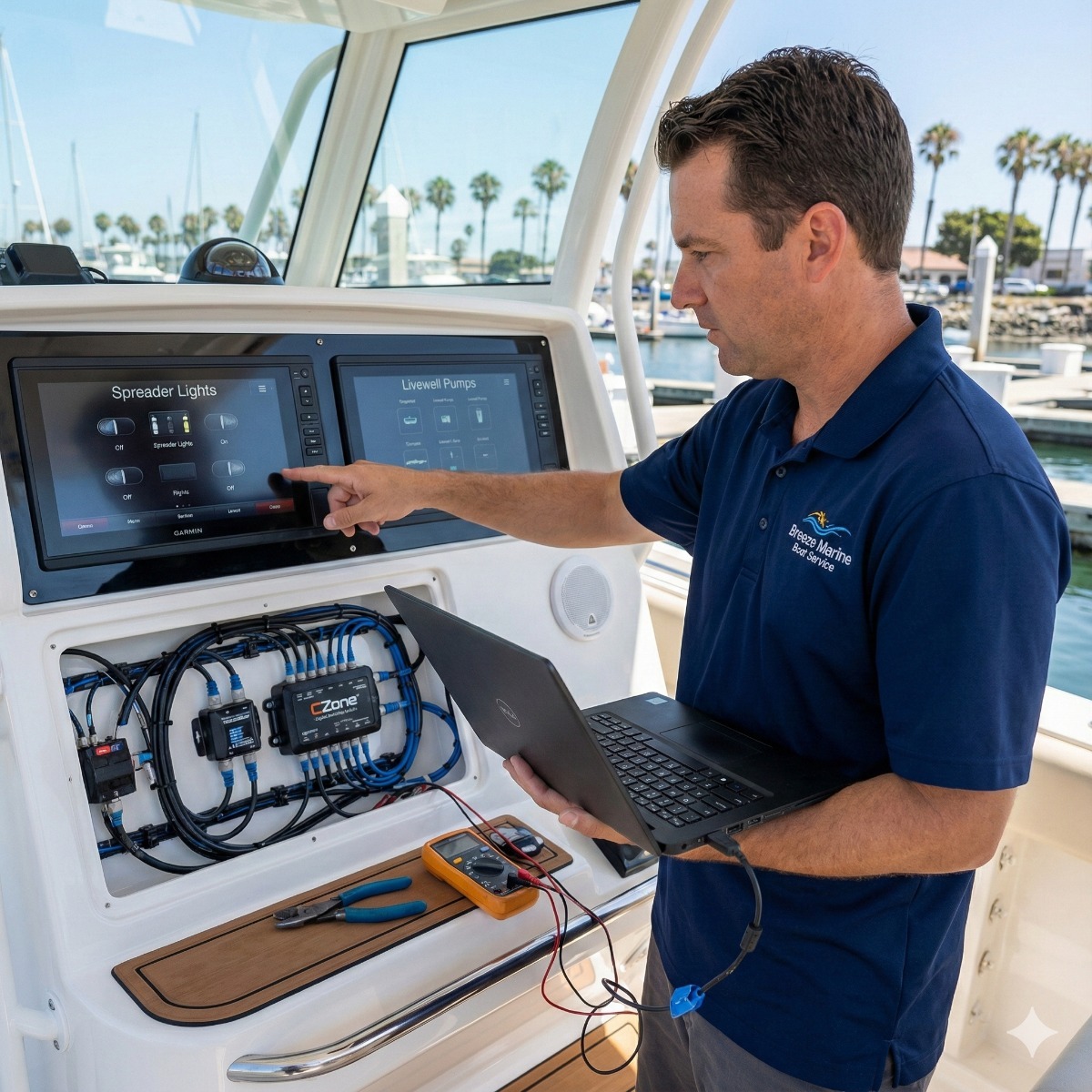

Marine electronics technician configuring a Garmin touchscreen chartplotter that controls a newly installed CZone digital switching system on a luxury center console in Long Beach.

Digital Switching Systems & NMEA 2000 Networking

SKU

2141

Rating:

100 % of 100

4 Reviews Add Your Review

$150.00

Replace miles of heavy, outdated analog copper wiring with a smart NMEA 2000 digital backbone. Get centralized touchscreen control of lighting, pumps, and batteries with advanced systems like CZone and EmpirBus.

Details

The Connected Vessel

Control Redefined.
Wirelessly.

Eliminate the analog clutter. We replace miles of outdated copper wiring and physical breakers with a smart, integrated NMEA 2000 backbone and solid-state digital switching.

NMEA 2000 Backbone

The nervous system of a modern boat. This single data cable connects engines, sensors, GPS, and switching modules, allowing them to communicate seamlessly and share data across all displays.

Glass Helm Integration

Forget physical rocker switches. We integrate systems like CZone or EmpirBus directly into your Garmin, Raymarine, or Simrad MFDs, giving you touchscreen control of every pump and light.

Solid-State Reliability

Digital switching modules use solid-state transistors instead of physical fuses. If a circuit trips, you reset it on the touchscreen—no more hunting for blown fuses in the dark engine room.

The Transformation.

From analog chaos to digital order.

Network Design

We map every electrical load on your vessel and design a custom NMEA 2000 topology, determining the placement of digital switching modules to minimize wire runs.

De-Rigging

We remove pounds of abandoned copper wiring and outdated breaker panels, cleaning up the electrical closets and helm station for the new hardware.

Installation

We install the NMEA backbone and mount the IPX-rated digital switching modules (like CZone Output Interfaces) near the equipment they control.

Programming

The magic happens here. We configure the software, creating custom "Modes" (e.g., "Night Mode," "Docking Mode") that automate multiple switches with a single button press.

Intelligent Automation.

Your boat, smarter than ever.

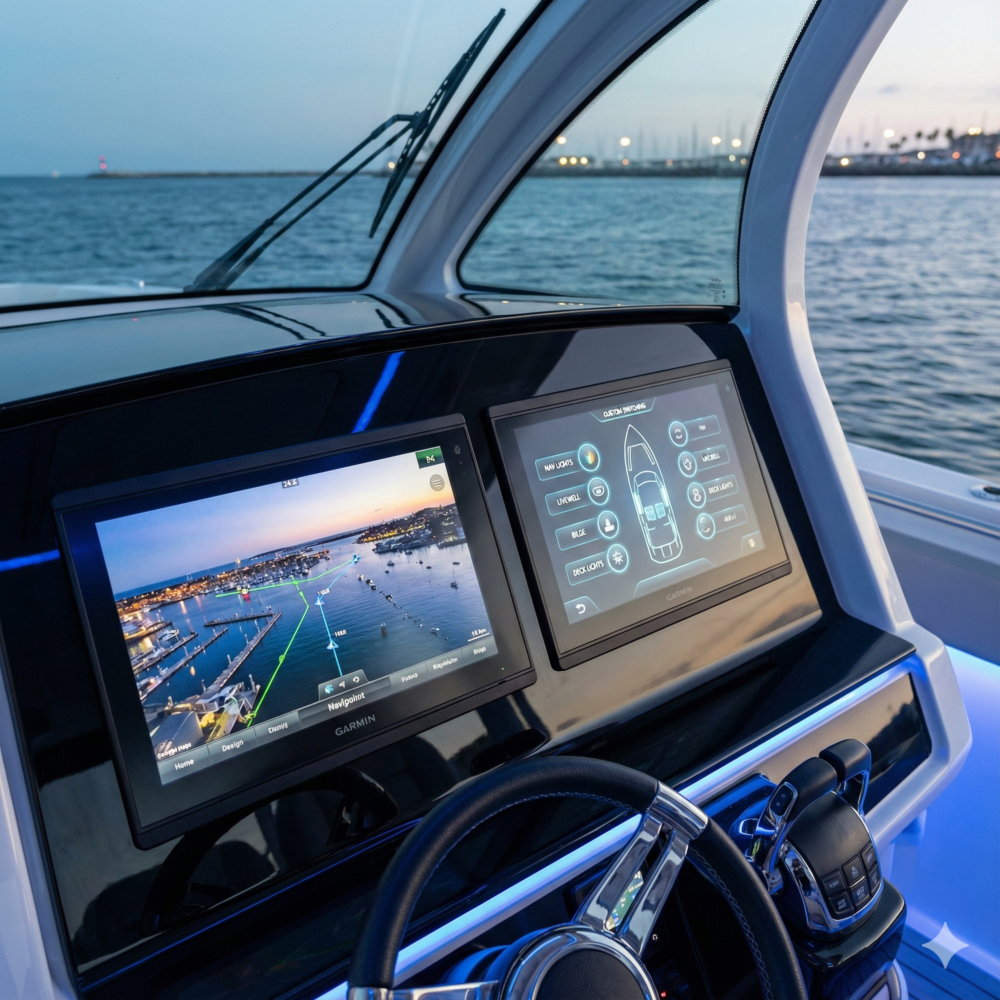

Custom marine glass helm upgrade featuring dual Garmin multifunction displays and digital switching interface.

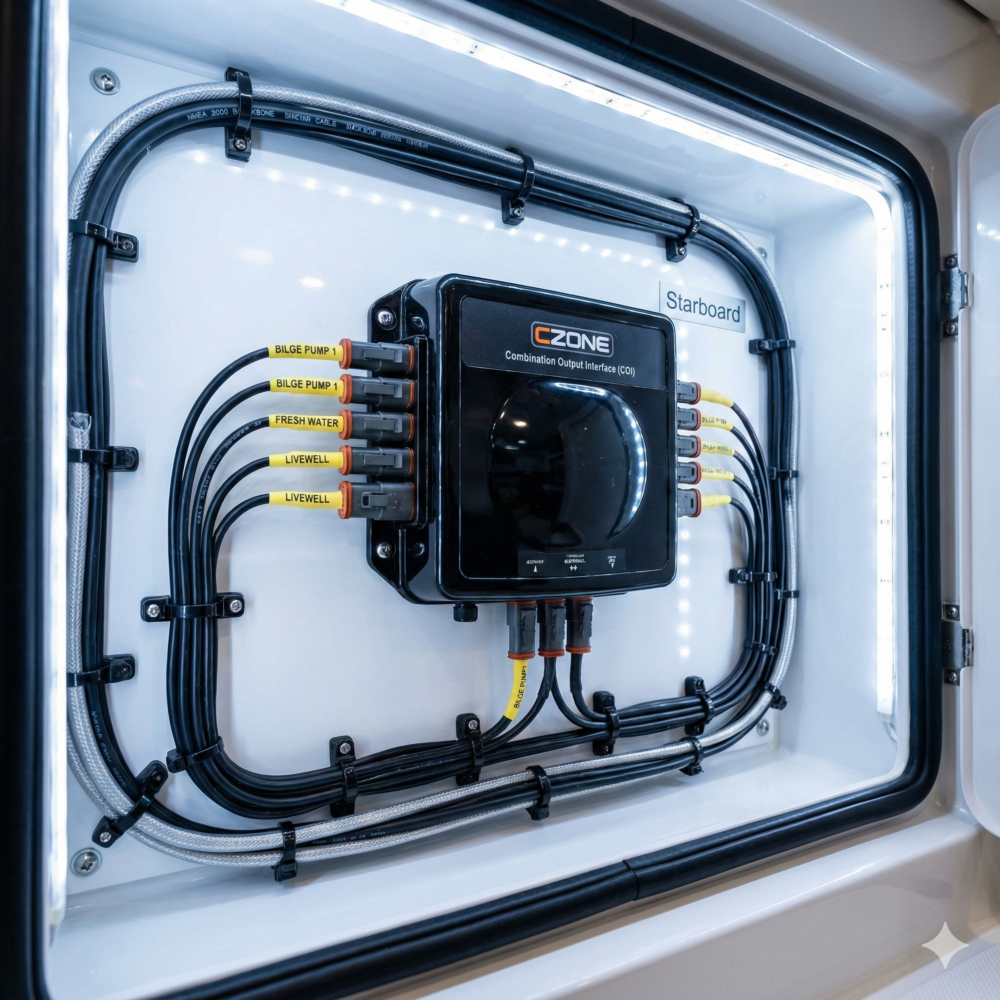

Professional CZone COI digital switching installation with aviation-grade marine wiring and waterproof Deutsch connectors.
