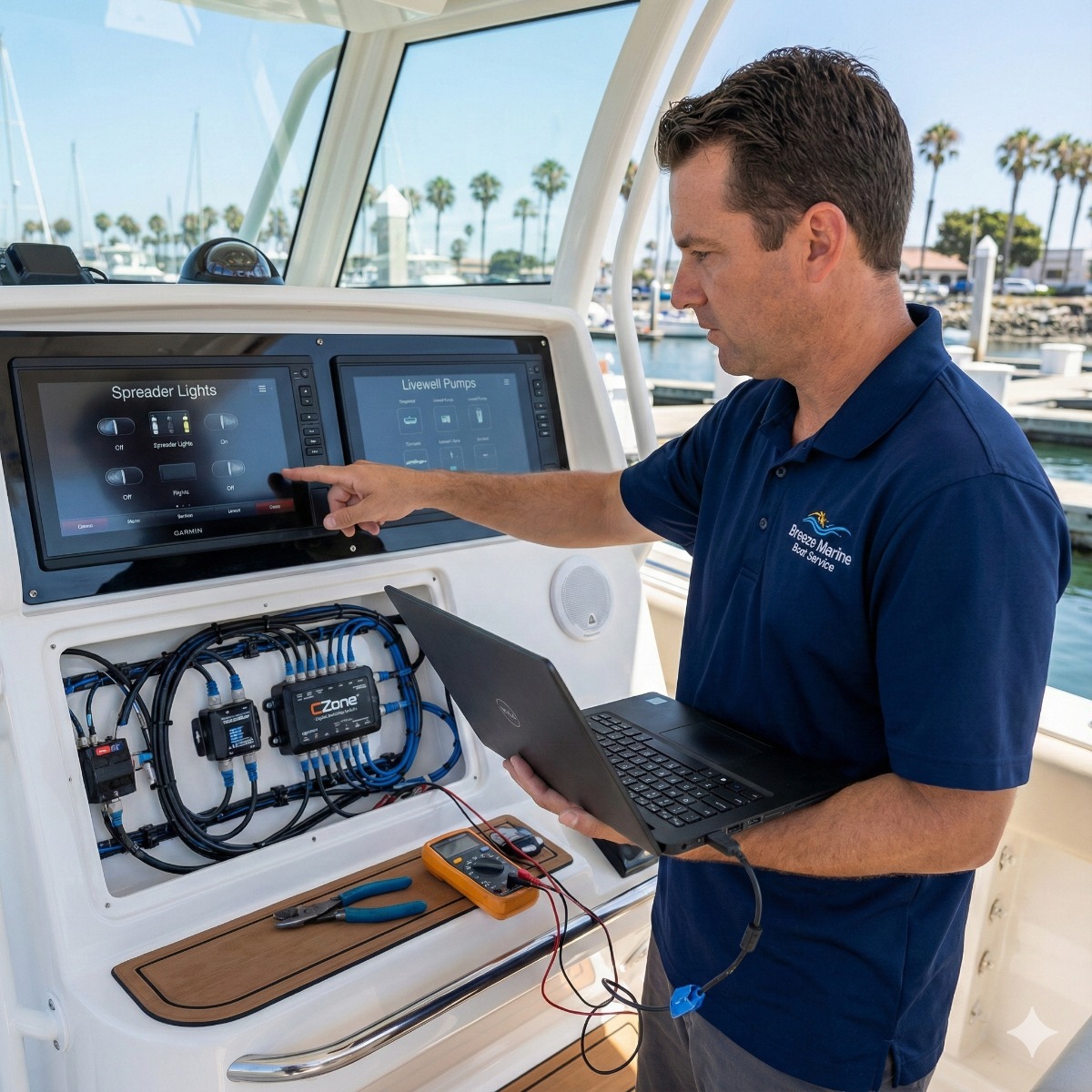

Question 1

How does digital switching improve marine safety and electrical efficiency?

Fryderyk Florczak · Accepted Answer

DSS enhances safety by providing instant fault detection and alerts displayed on the helm MFD, superior over-current protection, and the ability to remotely power cycle devices. For efficiency, it drastically reduces the weight and complexity of wiring, saves installation time, and supports automatic load shedding (turning off non-essential devices if battery voltage is low) to conserve power.

Question 2

What are the primary components of a typical Digital Switching System installation?

Fryderyk Florczak · Accepted Answer

A system primarily consists of: 1. Input/Output (I/O) Modules (Power Distribution Modules) that replace physical fuses/relays. 2. The NMEA 2000 Network Backbone linking all components. 3. Control Interfaces, which are the MFDs or specialized digital keypads used by the operator. 4. A System Core/Processor (often integrated into a main module) that runs the system's customized logic and automation.

Question 3

What is NMEA 2000, and how does it relate to digital switching?

Fryderyk Florczak · Accepted Answer

NMEA 2000 (N2K) is the marine industry standard communication protocol built on CAN bus technology. It allows electronic devices (GPS, sonar, engine sensors) from different brands to communicate via a single, multi-directional backbone cable. Digital switching systems use the NMEA 2000 backbone as their communication highway, sending control messages (PGNs) from the MFD to the power modules to activate circuits.

Question 4

What are PGNs in NMEA 2000, and why are they important for integration?

Fryderyk Florczak · Accepted Answer

PGN stands for Parameter Group Number. PGNs are the standardized digital messages used in the NMEA 2000 protocol. Every piece of data—whether it's engine RPM, wind speed, or a digital switching command—is assigned a unique PGN. This standardization is critical because it ensures that devices from any NMEA 2000 certified manufacturer can reliably interpret and act on the data being shared across the network.

Question 5

What are the three essential rules for a reliable NMEA 2000 network installation?

Fryderyk Florczak · Accepted Answer

For optimal performance, three rules must be followed: 1. Proper Termination: A 120-Ohm terminator must be installed only at each physical end of the backbone (resulting in 60 Ohms total resistance). 2. Central Power Tap: The single power source (9-16V) must be connected as close to the center of the backbone as possible to prevent voltage drop. 3. Drop Cable Length: Individual device drop cables must not exceed 6 meters (20 feet) in length.

Question 6

How is troubleshooting a digital switching system different from a traditional wired system?

Fryderyk Florczak · Accepted Answer

Troubleshooting shifts from physically tracing wires and testing voltage at the fuse block to digital network diagnostics. Key checks involve: 1. Network Resistance Test: Verifying exactly 60 Ohms between the CAN-H and CAN-L wires. 2. Voltage Check: Confirming stable power (9-16V) at the backbone extremities. 3. Software Diagnostics: Using MFD or dedicated tools to view network load (LEN/Current draw) and identify failed or non-responsive modules.

Question 7

What is a Load Equivalency Number (LEN) on an NMEA 2000 device?

Fryderyk Florczak · Accepted Answer

The LEN is a crucial metric that quantifies a device's power consumption on the NMEA 2000 network. One LEN equals 50 mA (0.05 Amps) of current draw. System designers must calculate the total LEN of all connected devices to ensure the network power supply and cabling can handle the combined load, which should generally not exceed 3 Amps total.
