Switching to marine LED lighting is one of the most noticeable upgrades you can make. LEDs draw far less current than halogen or incandescent bulbs, run cooler, last longer and open up options such as color-changing underwater boat lights. A good retrofit takes some planning, though. Poorly chosen fixtures, bad wiring or holes drilled in the wrong place can create more problems than they solve.

Why Retrofit to LED

  • Lower power draw: lights can run for hours at anchor without draining the house battery
  • Less heat: no hot fixtures in headliners or near fabrics
  • Longer life: fewer bulb changes in hard-to-reach spots
  • Color and control: white for tasks, red to protect night vision, colors for atmosphere

Boat Interior Lighting

Boat interior lighting usually starts with replacing old recessed halogen fixtures. Direct replacement fixtures are available in common sizes, but check cutout diameter, depth behind the panel and whether the existing wiring is sound. Warm white tones feel more comfortable in a cabin than cool blue-white. Dimmable fixtures and a red night mode are useful for moving around at night without ruining night vision. Courtesy lights at steps and companionways improve safety.

Deck and Cockpit Lighting

Marine deck lights include spreader lights on the mast or hardtop, cockpit floodlights, courtesy lights along gunwales and rope lighting under hardtops. Good marine deck lighting makes docking, anchoring and cleaning fish after dark safer. Pay attention to beam angle: a wide flood suits cockpits, while a narrower beam reaches the foredeck. Place boat deck lights so they do not shine into the helm and so they cannot be confused with navigation lights. Deck lighting should never be left on underway in a way that interferes with other vessels seeing your navigation lights.

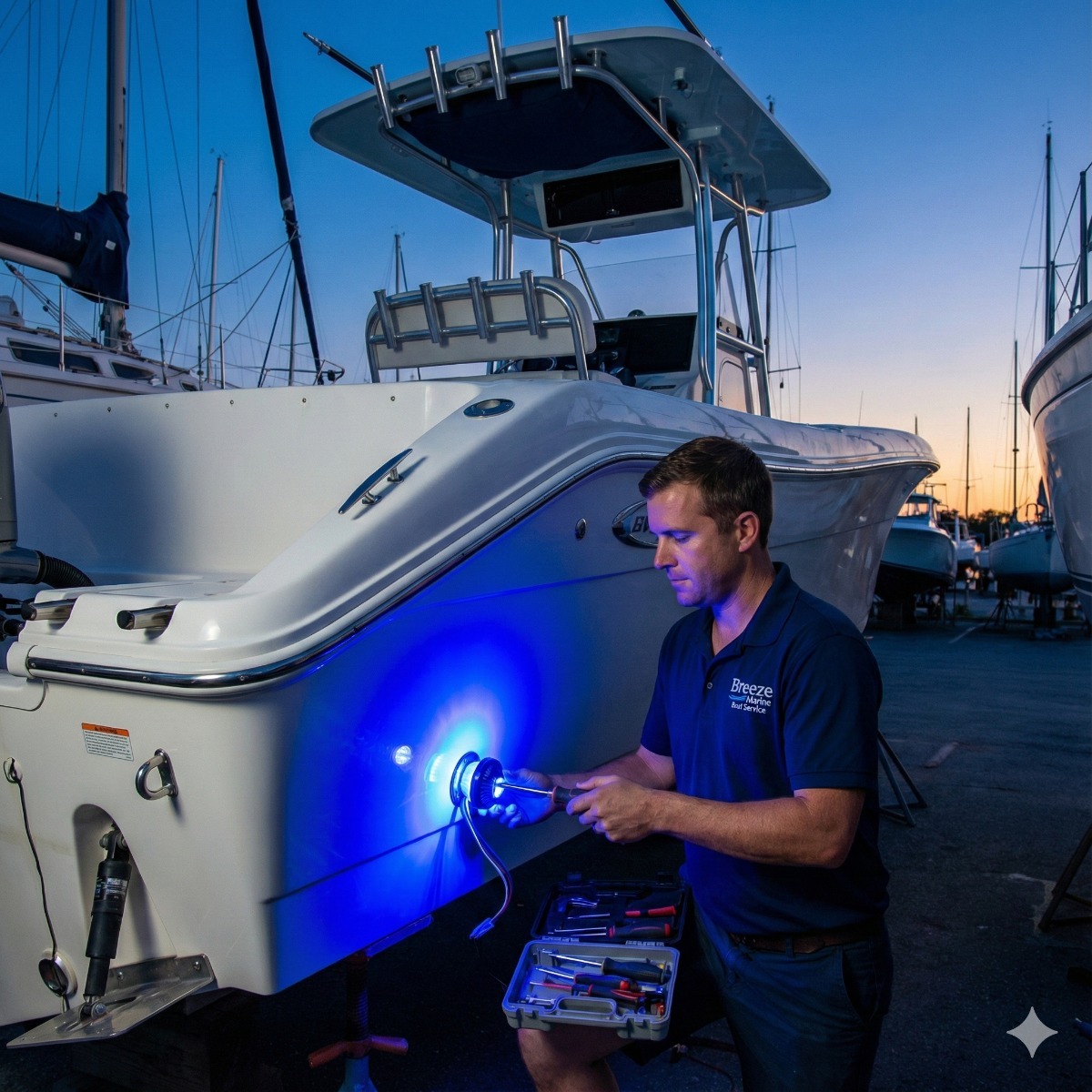

Underwater and Transom Lighting

Underwater lights create the signature glow around a boat at night and attract baitfish. Transom lights come in two main types:

  • Surface-mount: bolted to the transom with a small wire hole, simpler to install
  • Through-hull: installed through a larger hole in the hull, usually brighter and lower profile, but they require careful sealing and access from inside

Mounting position matters. Lights need to sit below the waterline at rest but clear of the propeller wash, trim tabs and through-hulls. Anything installed below the waterline must be bedded with a suitable marine sealant, and hull material and thickness must be checked before drilling. On aluminum hulls, isolation from dissimilar metals prevents corrosion.

Wiring and Power

LED retrofits reduce current draw, but they are sensitive to voltage fluctuation and poor connections. Use tinned marine wire, sealed heat shrink connectors, proper fuses or breakers and clean grounds. Many boats' original lighting circuits have corroded connections that cause flicker once LEDs are fitted. Some LEDs can also generate radio interference on VHF or fishfinders; quality fixtures and proper wiring reduce this.

Lighting Controllers

RGB and RGBW fixtures need lighting controllers to switch colors, set scenes and dim. Options range from simple switch-panel controllers to wireless remotes, phone apps and integration with multifunction displays. Plan the controller before installing so wiring runs and signal cables go where they need to be. Keep controllers in a dry location and check compatibility between brands.

Choosing Marine Lighting Accessories

Marine lighting accessories such as mounting brackets, waterproof connectors, junction boxes, switch panels and cable glands all affect how long an install lasts. Waterproof ratings matter: underwater fixtures need a rating suited to continuous submersion, while deck lights need protection against spray and washdowns.

Common Mistakes

  • Drilling through the hull without checking for stringers, fuel tanks or wiring on the other side
  • Using household or automotive connectors that corrode quickly
  • Undersized wiring for long runs, causing voltage drop and dim lights
  • Placing underwater lights too high, where they break the surface or pick up air bubbles
  • Mounting deck lights where they dazzle the helm

When to Call a Professional

Surface-mount deck and interior fixtures can be manageable for handy owners. Through-hull underwater lights, controller integration and anything involving drilling below the waterline are better handled by someone experienced. Our LED interior and underwater lighting retrofit service covers design and installation for boats in San Pedro, Long Beach and Los Angeles County.

Marine LED Lighting FAQ

Will LED lights drain my battery?

They draw far less current than halogen fixtures, so they are much easier on the battery, though every load adds up over a long night at anchor.

Can I install underwater lights while the boat is in the water?

Surface-mount lights sometimes can be. Through-hull lights require the boat to be hauled out.

Why do my new LEDs flicker?

Usually poor connections, voltage drop or incompatible dimmers. Checking the wiring and grounds typically solves it.
