A marine diesel can run for thousands of hours, but only while air, fuel and compression stay in balance. Two measurements say a lot about that balance: valve lash, which controls how the engine breathes, and compression, which shows how well each cylinder seals. Here is what each one means, which symptoms point to trouble and when to bring in a marine diesel mechanic.

What Valve Lash Is and Why It Changes

Valve lash, also called valve clearance, is the small gap between the rocker arm and the tip of the valve stem when the valve is closed. It leaves room for parts to expand as the engine heats up, and it drifts as the valve face, seat and rocker tip wear.

  • Too much clearance: the valve opens late and closes early, the engine takes in less air and the valve train starts to clatter.
  • Too little clearance: the valve may not close fully once hot. Combustion gas leaks past the seat, compression drops and the valve edge can burn.

Tight valves are the more dangerous condition because they are quiet; a burned exhaust valve is often the first sign.

Symptoms That Point to the Valve Train

Ticking at Idle

Some valve noise is normal on a diesel, but a sharper, louder rhythm at idle that rises and falls with engine speed is classic diesel engine ticking from excess clearance. Injector knock can sound similar, so measuring is the only real confirmation.

Smoke Color

Smoke color helps narrow down the cause:

  • Black smoke means more fuel than the available air can burn. Poorly set valves are one cause, along with a dirty air filter, a fouled bottom or a worn injector.
  • White smoke on a cold start that clears as the engine warms often points to low compression or late injection. A wet exhaust normally puts out some steam, so watch for haze that lingers and smells of raw diesel.
  • Blue smoke is burning oil, usually from worn rings, valve guides or valve stem seals.

Persistent diesel engine smoking together with hard starting, lost top-end RPM or rising fuel burn is a good reason to check lash and compression before guessing at parts.

How the Adjustment Is Done

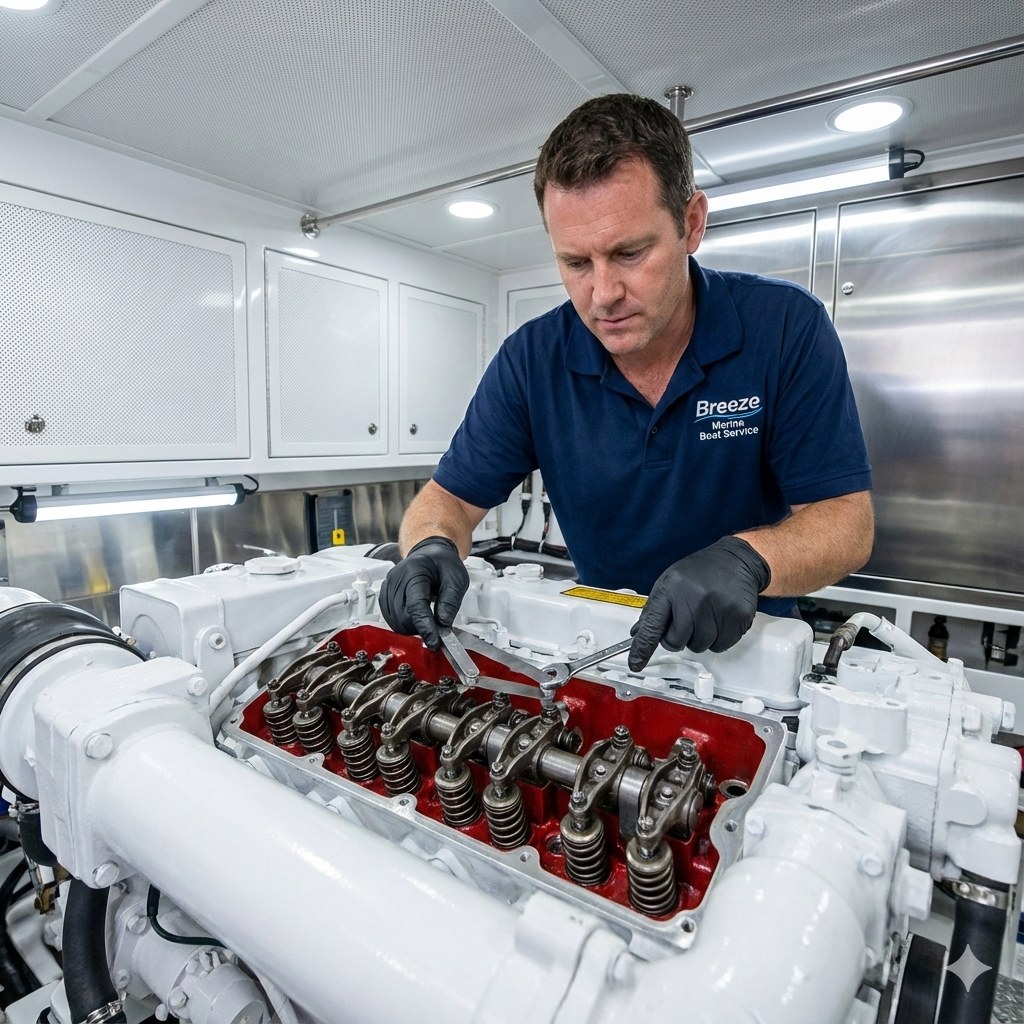

A valve lash adjustment is done on a fully cool engine, because published clearances are cold figures. With the valve cover off, the crankshaft is turned by hand until the cylinder being set is at top dead center on its compression stroke. A feeler gauge of the specified thickness should slide between rocker and valve with a light drag; if not, the adjusting screw is reset and its locknut tightened. Intake and exhaust often have different specs, and cylinders are set in firing order.

Manufacturers list a marine diesel valve adjustment at fixed hour intervals in the owner's manual. Many owners bundle it with impeller, filter and belt work as part of a yearly diesel engine tune up.

What a Diesel Compression Test Tells You

A diesel compression test measures the peak pressure each cylinder builds while the engine is cranked with the fuel shut off. A heavy-duty gauge made for diesel pressures threads into the injector or glow plug port of each cylinder in turn, usually on a warm engine with fully charged batteries.

Two things matter: how the numbers compare with the manufacturer's specification, and how closely they match each other. One cylinder well below the rest points to a problem in that cylinder. All cylinders reading low can mean general wear, or simply a weak battery and slow cranking.

Leak-Down Test: Finding Where the Pressure Goes

When one cylinder reads low, a leak-down test is the logical follow-up. The piston is set at top dead center, the cylinder is filled with regulated shop air and the technician listens for where it escapes: the intake points to an intake valve, the exhaust to an exhaust valve and the oil filler or breather to the piston rings.

Checking an Engine Before You Buy

A hull survey often does not cover the engines in depth, so buyers of used diesel boats commonly order a separate engine check. A pre-purchase compression test adds hard numbers to that check. Combined with an oil analysis, a sea trial and the maintenance records, it helps separate a tired engine that needs a valve job from one heading toward a rebuild, before the price is agreed.

What an Owner Can Check and When to Call a Pro

An owner can listen for new noises, watch the exhaust at start-up and under load, and note changes in fuel burn or top RPM. The adjustment itself calls for the correct specs, the firing order and a torque wrench. If any of that is unfamiliar, or if compression numbers come back uneven, it is time for a marine diesel mechanic. Catching a tight valve or weak cylinder early keeps the job small instead of letting it grow into major boat diesel repair. For boats around Long Beach, Los Angeles and Orange County, you can schedule valve adjustment and compression testing.

Valve and Compression FAQ

Can owners set valve lash themselves?

On many small marine diesels a careful owner with a feeler gauge set and the manual can do it. The usual mistakes are setting a cylinder that is not at top dead center, misjudging the gauge feel and overtightening the valve cover. If in doubt, have it done once by a technician and watch.

Should a compression test be done hot or cold?

Compression is normally tested on a warm engine, because rings and valves then seal as they do in service. Valve adjustment is the opposite and is done cold. Follow the procedure for your engine model.
