What is reverse cycle heating on a boat?

Reverse cycle heating uses your marine air conditioning system to produce heat by reversing the refrigerant flow. It’s an efficient way to heat cabins in cooler weather without separate heaters.

Why is my reverse cycle heater blowing cold air?

Common causes are a reversing valve that has not shifted (a burnt coil, no signal from the control or a stuck valve), poor seawater flow, a badly placed or faulty sensor, or a low refrigerant charge. We check the electrical side and the seawater flow; if the refrigerant charge or the valve itself is the problem, we refer you to an EPA 608 certified technician.

Do you check seawater flow during diagnostics?

Yes, we inspect the raw water pump, the strainer (with the seacock closed), the hoses and the discharge flow. Restricted water flow is one of the most common reasons reverse cycle heating fails to operate efficiently.

Can electrical issues affect reverse cycle heating?

Absolutely. Faulty relays, control panels, thermostats, or wiring can prevent the system from switching into heating mode. Electrical testing is part of our troubleshooting process.

Is reverse cycle heating effective in cold weather?

Reverse cycle systems work well in mild to moderate cold and lose efficiency as the seawater gets colder; below about 40°F they struggle. Southern California water rarely gets that cold, so they work year-round here.

Do you repair issues found during troubleshooting?

Yes. Once we find the cause, we can repair or replace seawater pumps, strainers, hoses, sensors, thermostats, reversing valve coils and control boards. Work on the sealed refrigerant system, such as recharging it or replacing the reversing valve, is done by an EPA 608 certified technician we work with or refer you to, and their charge is listed on your estimate.

Can proper troubleshooting extend the life of my HVAC system?

It helps. Fixing a water flow or electrical problem early takes strain off the compressor and wiring, which helps the system last longer and run more efficiently.

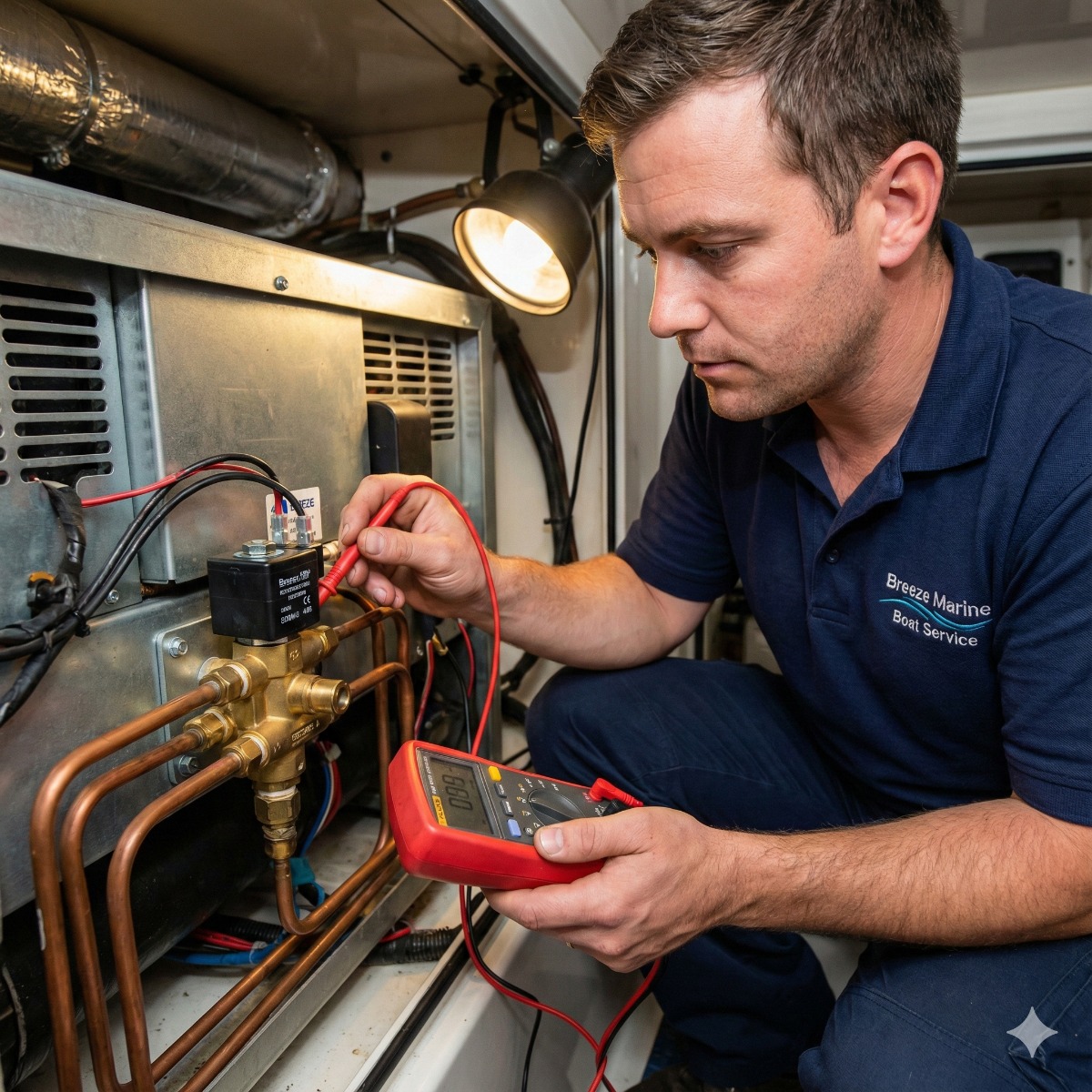

Breeze Marine technician testing the magnetic solenoid coil

Breeze Marine technician testing the magnetic solenoid coil (2)

Reverse Cycle Heating Troubleshooting

Set the thermostat to "Heat" but still freezing? Your reverse cycle unit is likely stuck in cooling mode. As part of marine HVAC repair, we troubleshoot the reversing valve solenoid and control logic to switch the flow and bring the warmth back.

Rating:

100% of 100

4 Reviews Add Your Review

$150 /hr

Labor estimate About 1 hour to diagnose, then a quote

Book sends us a ticket; nothing is charged online. Before any work you get a written estimate for labor, parts and the trip fee, and nothing is done without your OK.

Trip fee By distance, one way: $30 in San Pedro, $50 in Long Beach

San Pedro$30
Wilmington, Terminal Island$40
Long Beach: Shoreline, Rainbow Harbor$50
Long Beach Marina, Alamitos Bay$60
Redondo Beach$60
Seal Beach, Huntington Harbour$75
Marina del Rey$85
Newport Beach$110

Farther away: $25 plus $2.50 a mile, one way from our San Pedro shop. No trip fee when the boat comes to our shop, or for plan members. The work of a visit is at least $150; the trip fee is on top.

Registered in California: Breeze Marine Boat Service LLC, San Pedro
Where we work: At your slip from Marina del Rey to Newport Beach, or in our San Pedro shop
Questions first: (213) 693-0224 or submit a ticket

About this service

Winter Comfort

Warmth on
the Water.

It's called "Reverse Cycle" because it literally reverses the flow of refrigerant. If your thermostat calls for heat but you find the boat heater blowing cold air, your system is stuck. We find out why it won't shift.

The Reversing Valve

This brass component is the heart of the heating system in reverse cycle marine air conditioning. It physically redirects the refrigerant flow. If it sticks (common after long periods of disuse), you get no heat.

The Solenoid Click

An electric coil activates the valve. When you switch to heat, you should hear a distinct "whoosh-click." If you don't, the solenoid may be burnt out or getting no voltage.

Heat from the Sea

Your boat extracts heat from the ocean water. Even 50°F water contains heat energy. However, if water flow is restricted, the unit will freeze up and shut down.

Troubleshooting Path.

Diagnosing the chill, step by step.

Voltage Check

We test the thermostat output to ensure it is sending the 110V/24V signal to the reversing valve solenoid when "Heat" is selected.

Solenoid Test

We check the magnetic coil for resistance. A burnt coil is a simple repair: it slips over the outside of the valve, so the sealed system stays closed. We replace it to restore the valve's ability to shift.

Valve Freeing

If the coil is good but you still have a stuck reversing valve, we try to free the slider inside by switching the valve back and forth with the compressor running (pressure differential shifting). If it stays stuck, the valve has to be replaced inside the sealed refrigerant circuit: that is done by an EPA 608 certified technician we work with or refer you to, and their charge is listed on your estimate.

Sensor Calibration

Sometimes the ambient air sensor is touching a cold hull wall, giving false readings. We reposition it for accurate temperature control.

Comfort Restored.

Don't let the cold ruin your night aboard.

Testing reversing valve solenoid voltage on a marine AC unit

Brass reversing valve on a reverse cycle marine AC unit

Setting up a digital thermostat in a yacht cabin

Component Logic.

For boat heat pump troubleshooting, these are the parts we check.

Reversing Valve 4-Way Brass Slider

Activation Electro-Magnetic Coil

Limit Min Water Temp 40°F

Common Questions

Why does it blow cold first?

This is normal. The fan usually starts before the compressor builds heat. However, if it stays cold for more than 2-3 minutes, the reversing valve has likely failed to shift.

Will it work in freezing water?

Marine heat pumps struggle when water temps drop below 40°F (4°C). In Southern California, this is rarely an issue, and they work efficiently year-round.
