What is diesel injection pump timing and why is it important?

Injection pump timing sets the moment fuel is injected into each cylinder, relative to the piston position. Correct timing gives clean combustion and full power; wrong timing causes hard starting, smoke, knocking and, in bad cases, engine damage.

How is a diesel injection pump calibrated?

We check and set the pump timing on the engine to the engine maker's specification, using the timing marks and the proper tools, then run the engine to confirm it starts easily, idles smoothly and runs clean. Fuel-delivery calibration is bench work for a diesel injection shop: if your pump needs it, we remove it, the shop calibrates it, and we reinstall and time the pump when it comes back. Engines with electronic common-rail injection have no pump timing to set; the engine computer controls it.

What are the signs that my injection pump needs adjustment?

Common signs include hard starting, rough idling, heavy smoke, knocking, poor fuel economy or reduced power. The same signs can come from injectors, air in the fuel or a restricted air intake, so we check those before adjusting the pump.

Can improper timing damage my engine?

Yes, incorrect timing can cause knocking, overheating, excessive wear and even catastrophic failure. That is why timing is set with the proper tools to the engine maker's specification, never by ear.

How often should I check my diesel injection pump timing?

Pump timing does not usually change on its own, so follow your engine maker's maintenance schedule. Have it checked whenever the injection pump, timing belt or timing gears have been removed or replaced, and when the engine starts hard, smokes heavily, knocks or loses power.

Do you test the engine after pump calibration?

Yes. After setting the timing we start and run the engine, check the idle and the exhaust smoke, and run it in gear to confirm it pulls cleanly.

Can diesel injection pump calibration improve fuel efficiency?

If the timing was off, yes: correct timing helps the engine burn its fuel completely, which can lower fuel use, smoke and wear. If the timing was already on spec, adjusting it will not save fuel.

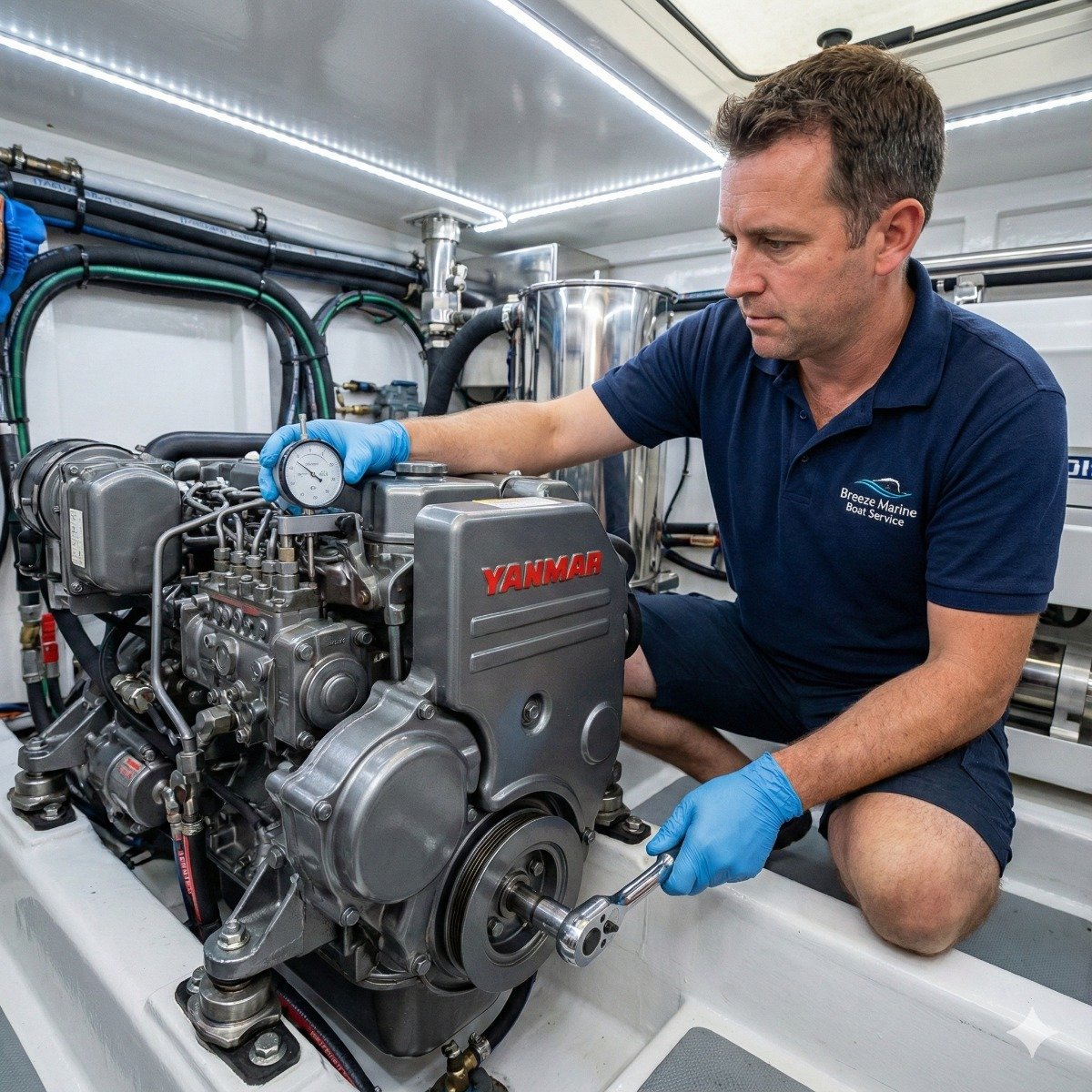

Marine diesel technician using a dial indicator gauge mounted on the injection pump of a Yanmar
